IMAGO TK1
TREKKING SUV
COLOR
BLACK-MUD GREY
MOTOR
OLI SPORT PLUS – 85NM
BATTERY
36V – 20AH – 720WH
MOTOR DATA
Motor 250 Watt
Maximun torque 85Nm
Motor weight 3.500 g
Battery 630Wh
Battery weight 3.100 g
Battery range up to 150 km
AUTONOMY PERFORMANCE IN KMS OF THE TORQUE DRIVE SYSTEM

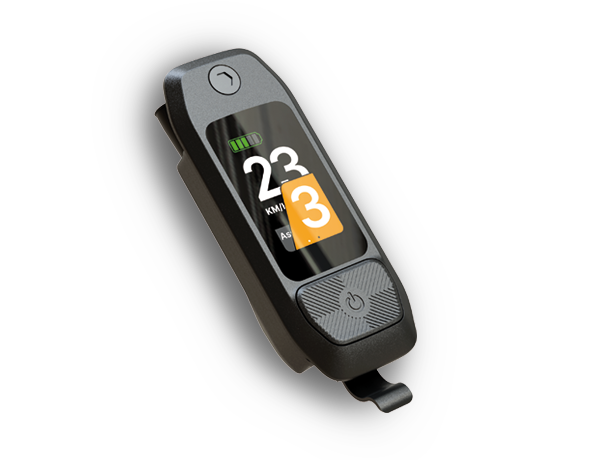

FRAME INTEGRATED DISPLAY
– 1.47“ screen size
– Waterproof IP67
– Walk assistance 6 km
– Daytime and night mode
– Power on/off control
– Remote control
– Total kilometres / ODO
– Partial kilometres / TRIP
– Headlamp on/off control<bro
GEOMETRY
| SIZE | RC | WB | BBD | ST | STACK | REACH | TT | HT | FL | FR | SA | HA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XL | 456 | 1303 | 30 | 485 | 636 | 532 | 661 | 140 | 566 | 42 | 78° | 66° |
| L | 456 | 1270 | 30 | 470 | 627 | 503 | 640 | 130 | 541 | 42 | 78° | 66° |
| M | 456 | 1236 | 30 | 440 | 618 | 473 | 605 | 120 | 541 | 42 | 78° | 66° |
COMPONENTS
| TIRES | 29” X 2.6” FRONT 27.5” X 2.35” REAR SCHWALBE ALL GROUNDER |
| WHEELS | 29 FRONT / 27.5 REAR DOUBLE CHAMBER T2 SPOOKING |
| FRAME | HYDROFORMED ALUMINIUM |
| FORK | SRAM ROCKSHOX F35 SILVER RL 29F 140 BLK |
| REAR SHOCK ABSORBER | SUNTOUR EDGE X 185/50 TRUNNION |
| STEM | ZOOM STEM EXT 75 MM |
| HANDLEBAR | ZOOM MTB ALLOY W740 BARBORE 31.8 MM |
| SADDLE | SELLE ITALIA X3 WITH HOLE |
| SEAT TUBE | ZOOM SP-406 EXTENTION 350 |
| GEAR RIM | CKM 34T-HBK ANTI-FALL |
| PEDALS | NON-SLIP PEDAL |
| BRAKES | HYDRAULIC SHIMANO MT 200 DISK 180 MM |
| GEAR | SHIMANO 11V CUES |
| DERAILLEUR | SHIMANO DERAILLEUR CUES RDU6000 |
| CASSETTE | SHIMANO CASSETTE CUES 11-50T |
| DISPLAY | MULTIFUNCTION COMPUTER OLI COLOR DISPLAY |
| MOTOR | OLI EDS CENTRAL MOTOR TORQUE SYSTEM 250W SPORT (85NM) |
| MAX SPEED | 25 KM/H |
| BATTERY | 36V 17.5AH 630WH REMOVABLE |
| PESO BATTERIA | 3.1 KG |
| CHARGE TIME | 7/8 HOURS |
| MINIMUM CHARGE | 30-40 DAYS |
| AUTONOMY | SEE DATA SHEET |
| WEIGHT | 28 KG |
| REAR CARRIER LOAD CAPACITY | 25 KG |
| MAX CAPACITY | 100 KG |
| FRONT/REAR LIGHT | LED INTEGRATED POWER SUPPLY |
Technical characteristics and components may be subject to changes without prior notice.
