AUDAX XC 005
ENGINE
OLI MOVE PLUS
BATTERY
LG 13 AH / 468 WH
* Average of combined use of all four modes
* The renages are tipica values of the new rechargeable batteries, which may decrease if one of the conditions listed above deteriorates.
*** No additional connected electronic components, e.g. light.

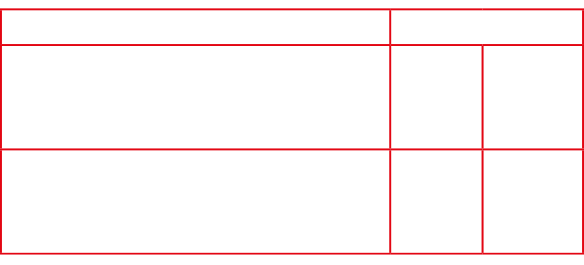

DRIVE UNIT PERFORMANCE

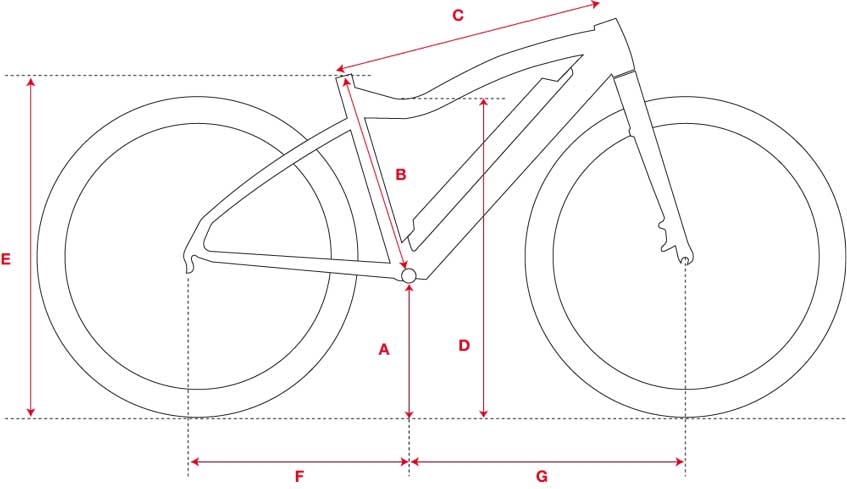

GEOMETRIES
| SIZE | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 17'' | 310 | 445 | 541 | 677 | 729 | 455 | 672 |
COMPONENTS
| WHEELS | 26" x 4.0” Kenda tyres MALVESTITI CERCHI ITALIA high profile double chamber rim |
| FRAME | hydroformed aluminium |
| FORK | rigid reinforced aluminium |
| STEM | aluminium |
| SADDLE | SELLE ROYAL RAMPAGE model, with position light coupling (light available on request) |
| STEERING HEAD | aluminium |
| CHAINWHEEL | FSA CK762 ISIS 165mm |
| PEDALS | WELLGO aluminium LU934 |
| BRAKES | TEKTRO HD-M290 OIL TUBE hydraulic disc |
| GEARS | SHIMANO RD-M4000SG 9 speeds |
| B-BRACKETT | integrated in the central motor |
| DISPLAY | OLI EDS multifunction computer |
| MOTOR AND POWER | OLI MOVE PLUS 250W -80 Newton/metro central torque system |
| MAX SPEED | 25 Km/h |
| BATTERY | Li-ion 36V-13Ah 468Wh LG cells integrated in the frame |
| BATTERY WEIGHT | 3,5 Kg |
| CHARGE TIME | 5-6 hours |
| MINIMUM CHARGE | 30-40 days |
| AUTONOMY | see data sheet, page 41 |
| WEIGHT | 25 Kg |
| MAXIMUM CAPACITY | 90 Kg |
DISPLAY
| BOSCH PURION DISPLAY | Charging status, speed, riding mode, range, trip distance, total distance |
| Play lighted from behind | |
| 5 riding modes |
|
| Walk assistance | |
| Splash-proof | |
| Operated from handlebar | |
| Compatible with DualBattery |
