AUDAX XC 001
ENGINE
BOSCH PERFORMANCE CX
BATTERY
14 AH / 500 WH
* Average of combined use of all four modes
* The renages are tipica values of the new rechargeable batteries, which may decrease if one of the conditions listed above deteriorates.
*** No additional connected electronic components, e.g. light.

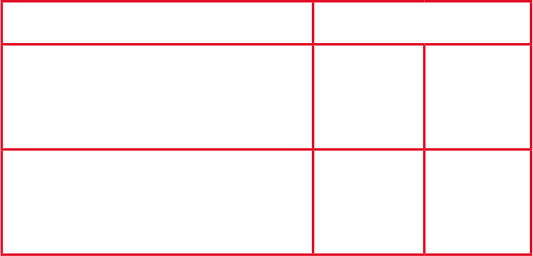

DRIVE UNIT PERFORMANCE

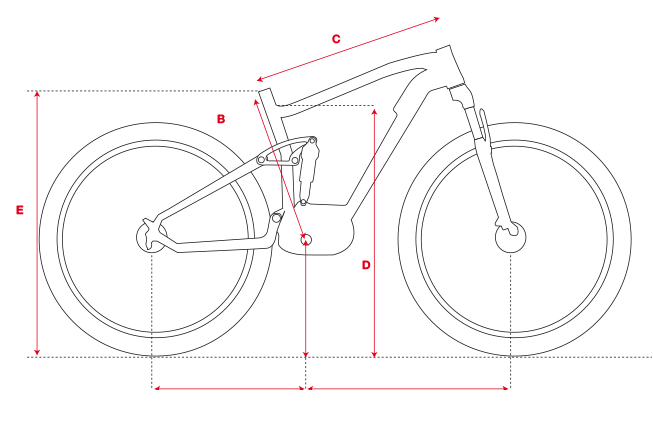

GEOMETRIES
| SIZE | RC | WB | BBD | ST | STACK | REACH | TT | HT | FL | FR | SA | HA |
| 17'' | 464 | 1167 | 44 | 432 | 596 | 440 | 577 | 130 | 505 | 42 | 74 | 69 |
| 19'' | 464 | 1187 | 44 | 482 | 601 | 446 | 596 | 135 | 505 | 42 | 74 | 69 |
| 21'' | 464 | 1207 | 44 | 533 | 607 | 480 | 620 | 141 | 505 | 42 | 74 | 69 |
COMPONENTS
| WHEELS | SCHWALBE NOBBY NIC SNAKESKIN plus 27.5"x 2.35" tyre - RODI BLACKROCK high profile double chamber rim with Sapin 14G spokes |
| FRAME | hydroformed aluminium |
| FORK | ROCKSHOCX RECON RL CROWN ADJUST air suspension |
| STEM | JD COMPONENTS ST58A |
| HANDLEBAR | PROMAX aluminium HB3188 |
| SADDLE | SELLE ROYAL SETA S1 W/ACTEX |
| STEERING HEAD | PROMAX SP226 30.9X400 |
| CHAINWHEEL | FSA CK745 ISIS /CROWN FSA 15T |
| PEDALS | -XERAMA SP-610 ALLOY CAYETE |
| BRAKES | SHIMANO DEORE M6000 OIL TUBE hydraulic disc/disc 180MM / 160MM |
| DERAILLEUR | SHIMANO XT RD-M8000-11 speeds |
| GEARS | SHIMANO SLX SL-M7000 11 speeds |
| B-BRACKETT | integrated in the central motor |
| DISPLAY | BOSH PURION |
| MOTOR AND POWER | BOSH PERFORMANCE CX |
| MAX SPEED | 25 Km/h |
| BATTERY | BOSCH POWERTUBE 36V-14Ah 500Wh |
| BATTERY WEIGHT | 3,5 Kg |
| CHARGE TIME | 5-6 hours |
| MINIMUM CHARGE | 30-40 days |
| AUTONOMY | see chart |
| WEIGHT | 21 Kg |
| MAXIMUM CAPACITY | 90 Kg |
DISPLAY
| BOSCH PURION DISPLAY | Charging status, speed, riding mode, range, trip distance, total distance |
| Play lighted from behind | |
| 5 riding modes |
|
| Walk assistance | |
| Splash-proof | |
| Operated from handlebar | |
| Compatible with DualBattery |
