IMAGO TK 301
ENGINE
BOSCH PERFORMANCE CRUISE
BATTERY
14 AH / 500 WH
* Average of combined use of all four modes
* The renages are tipica values of the new rechargeable batteries, which may decrease if one of the conditions listed above deteriorates.
*** No additional connected electronic components, e.g. light.

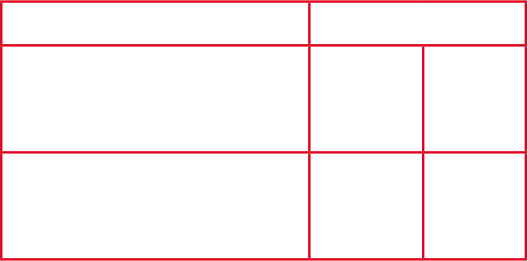

DRIVE UNIT PERFORMANCE

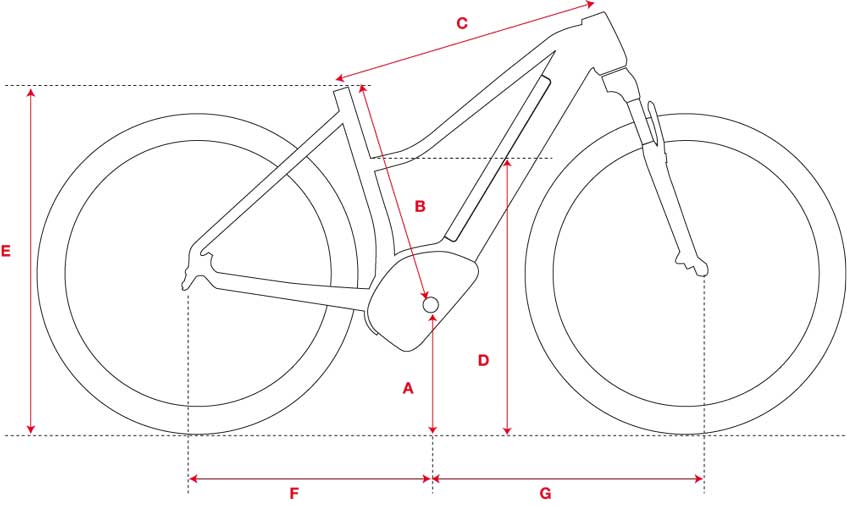

GEOMETRIES
| SIZE | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 19'' | 300 | 480 | 564 | 622 | 760 | 465 | 654 |
COMPONENTS
| WHEELS | 28.0" x 2.0" - SCHWALBE BIG APPLE PLUS tyre - RODI BLACKROCK 28" high profile double chamberrim with Sapin 14G spokes |
| FRAME | hydroformed aluminium |
| FORK | SUNTOUR NEX-E25 suspension |
| STEM | PROMAX DA-230 |
| HANDLEBAR | PROMAX aluminium HB3118 |
| SADDLE | ROYAL SETA S1 W/ACTEX SADDLES |
| STEERING HEAD | KALLOY SPDC1 30.9 X400 |
| CHAINWHEEL | FSA CK745 ISIS /CROWN FSA 18T |
| PEDALS | XERAMA SP-811 ALLOY CAYETE |
| BRAKES | SHIMANO DEORE BR M6000 OIL TUBE hydraulic disc/ disc 180MM / 160MM |
| DERAILLEUR | SHIMANO SLX SL-M670GS 10 speeds |
| GEARS | SHIMANO DEORE SL-T6000 RAPIDFIRE PLUS 10 speeds |
| B-BRACKETT | integrated in the central motor |
| DISPLAY | BOSCH INTUVIA |
| MOTOR AND POWER | BOSCH PERFORMANCE CRUISE |
| MAX SPEED | 25 Km/h |
| BATTERY | BOSCH POWERTUBE 36V - 14Ah 500Wh |
| BATTERY WEIGHT | 3,5 Kg |
| CHARGE TIME | 5-6 hours |
| MINIMUM CHARGE | 30-40 days |
| AUTONOMY | see data sheet, page 35 |
| WEIGHT | 21 Kg |
| MAXIMUM CAPACITY | 100 Kg |
DISPLAY
| BOSCH PURION DISPLAY | Charging status, speed, riding mode, range, trip distance, total distance |
| Play lighted from behind | |
| 5 riding modes |
|
| Walk assistance | |
| Splash-proof | |
| Operated from handlebar | |
| Compatible with DualBattery |
