AUDAX XC 005

AUDAX XC 005


ENGINE

OLI MOVE PLUS

BATTERY

LG 13 AH / 468 WH

Dettaglio movimento centrale Garelli Audax XC 005

* Average of combined use of all four modes
* The renages are tipica values of the new rechargeable batteries, which may decrease if one of the conditions listed above deteriorates.
*** No additional connected electronic components, e.g. light.

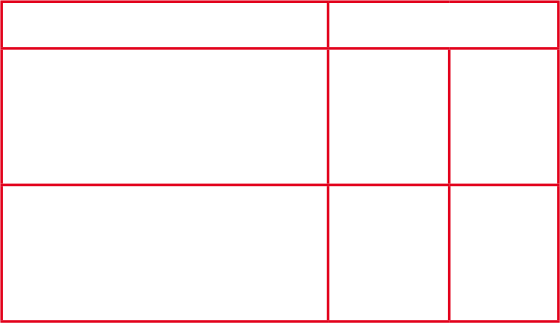

DRIVE UNIT PERFORMANCE

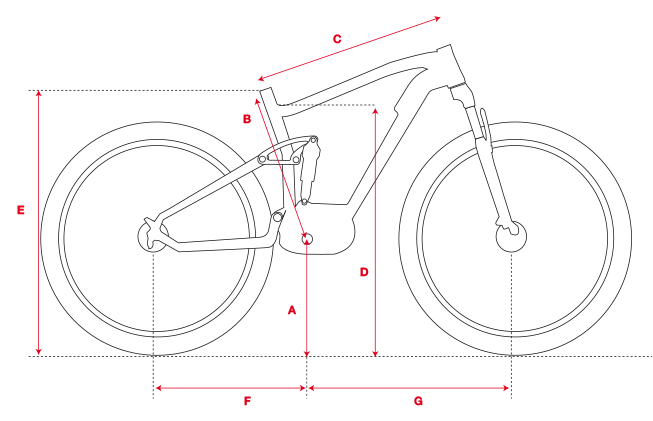

GEOMETRIES


SIZEABCDEFG
17''310445541677729455672

COMPONENTS


WHEELS26" x 4.0” Kenda tyres MALVESTITI CERCHI ITALIA high profile double chamber rim
FRAMEhydroformed aluminium
FORKrigid reinforced aluminium
STEMaluminium
SADDLESELLE ROYAL RAMPAGE model, with position light
coupling (light available on request)
STEERING HEADaluminium
CHAINWHEELFSA CK762 ISIS 165mm
PEDALSWELLGO aluminium LU934
BRAKESTEKTRO HD-M290 OIL TUBE hydraulic disc
GEARSSHIMANO RD-M4000SG 9 speeds
B-BRACKETTintegrated in the central motor
DISPLAYOLI EDS multifunction computer
MOTOR AND POWEROLI MOVE PLUS 250W -80 Newton/metro central
torque system
MAX SPEED25 Km/h
BATTERYLi-ion 36V-13Ah 468Wh LG cells integrated in the
frame
BATTERY WEIGHT3,5 Kg
CHARGE TIME5-6 hours
MINIMUM CHARGE30-40 days
AUTONOMYsee data sheet, page 41
WEIGHT25 Kg
MAXIMUM
CAPACITY
100 Kg

DISPLAY


BOSCH PURION DISPLAY Charging status, speed, riding mode, range, trip distance, total distance
Play lighted from behind
5 riding modes
Walk assistance
Splash-proof
Operated from handlebar
Compatible with DualBattery

DISCOVER ALL
E-BIKES VERSION

OLI MOVE PLUS ENGINE

Powerful and reliable right from the lowest revs, thanks to the torque that helps at the toughest moments, MOVE PLUS is agile and fluid. It assists the pedalling mode and supports the cyclist’s effort. It operates on different levels, from the discreet to the more aggressive thrust for sports trials. The course of the drive torque shows how the motor is designed to express maximum thrust up to a cadence of 105RPM, keeping the output of the motor high even at higher rotation speeds.
