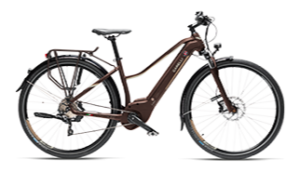

VIRTUS CT 200
ENGINE

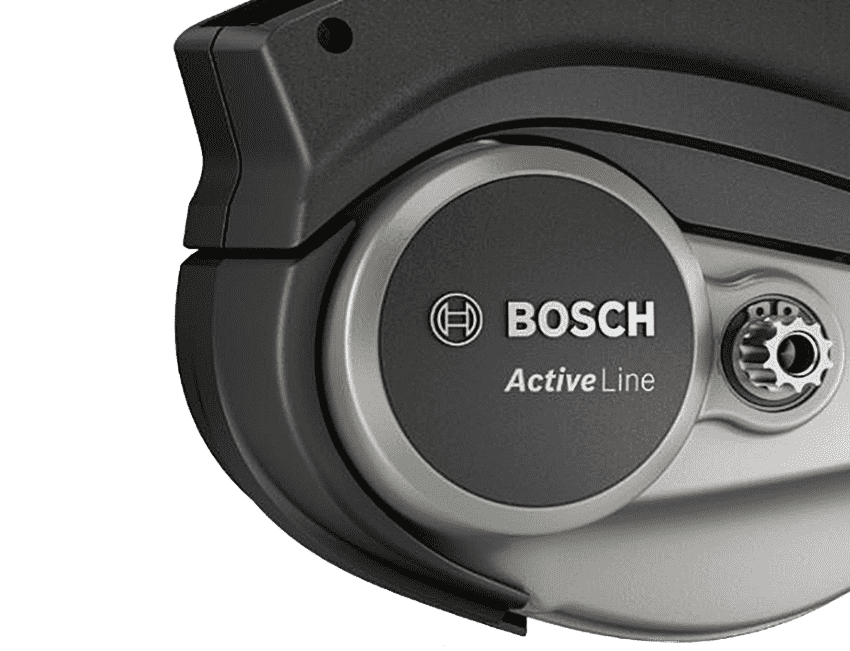

BOSCH ACTIVE LINE PLUS
BATTERY
11 AH / 400 WH
* Average of combined use of all four modes
* The renages are tipica values of the new rechargeable batteries, which may decrease if one of the conditions listed above deteriorates.
*** No additional connected electronic components, e.g. light.

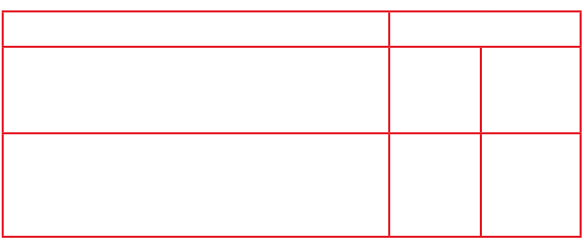

DRIVE UNIT PERFORMANCE
GEOMETRIES
| SIZE | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 18'' | 310 | 460 | 563 | 443 | 740 | 478 | 606 |
COMPONENTS
| WHEELS | 28" x 1.60 SCHWALBE ROAD CRUISER tyres - BLACKROCK 28" high profile double chamber rim with SAPIM 14G spokes |
| FRAME | hydroformed aluminium |
| FORK | SUNTOUR NEX-E25 DS |
| STEM | PROMAX MQ-565 adjustable aluminium |
| SADDLE | VELO VL 6142 PLUSH CITY model saddle |
| STEERING HEAD | KALLOY SPDC1 30.9 X400 |
| CHAINWHEEL | FSA CK-200 aluminium 38T crown |
| PEDALS | PT XERAMA SP811 aluminium CAYETE model |
| BRAKES | SHIMANO ALTUS BR-M315 front and rear hydraulic disc, 160MM disc |
| GEARS | SHIMANO ACERA RD-M360SGSL 8 speeds |
| B-BRACKETT | integrated in the central motor |
| DISPLAY | BOSCH PURION |
| FRONT AND REAR LIGHT | front.: AXA blueline 30 / rear: TRELOCK LS611 |
| MOTOR AND POWER | BOSCH ACTIVE LINE PLUS |
| MAX SPEED | 25 Km/h |
| BATTERY | BOSCH POWERPACK 36V-11Ah 400Wh |
| BATTERY WEIGHT | 3,5 Kg |
| CHARGE TIME | 5-6 hours |
| MINIMUM CHARGE | 30-40 days |
| AUTONOMY | see data sheet, page 39 |
| WEIGHT | 25 Kg |
| MAXIMUM CAPACITY | 90 Kg |
| CARRIER CAPACITY | 25 Kg |
DISPLAY
| BOSCH PURION DISPLAY | Charging status, speed, riding mode, range, trip distance, total distance |
| Play lighted from behind | |
| 5 riding modes |
|
| Walk assistance | |
| Splash-proof | |
| Operated from handlebar | |
| Compatible with DualBattery |
