AUDAX GR 001

AUDAX GR 001


ENGINE

POLINI EP3

BATTERY

14 AH / 500 WH

Average Pedalling Frequency 60-80 Rpm.
Cyclist Weight 60-80 Kg
Range – Average Speed 20-25 Km/h
Bicycle With Road Or Narrow Mtb Wheel
Flat Terrain

dysplay-pol

GEOMETRIES


SIZERCWBBBDSTSTACKREACHTTHTFLFRSAHA
17"4451034.569450533377.25251153955074.570.5
19”4451035.769480556379.3535135395507471
21”4451038.269500565.2379.85451453955073.571.5

COMPONENTS


WHEELSSCHWALBE NOBBY NIC SNAKESKIN plus 29"X 2.35"FRONT /27.5" X 2.6" REAR .Rim double hall MALVESTITI CERCHI ITALIA
FRAMEalloy hydroformed
FORKROCKSHOX 35 GOLD BOOST 29” TRAVEL 160mm.
AXLE 15mm.(110mm.)
REAR SHOCKRock Shox Deluxe trunnion 185x55
STEMZOOM TDS-D507G-8FOV(EN-M) 40mm
HANDLEBARZOOM MTB-AL-320BT FOV W :720mm D :31.8mm
SADDLEDDK model 5090, GEL ergonomic
SEAT TUBEZOOM SP-C207 4X 350mm
CHAINWHEEL / CRANKFSA CK745 ISIS /chain wheel FSA 15T
BRAKESSHIMANO XT (4 pistoni) disco 180mm Post./ 203 mm Ant.
GEARSSRAM EAGLE 12V 11-50T
B-BRACKETTPOLINI Iintegrate in central motor
DISPLAYPOLINI ERGONOMIC CONFORT LCD DISPLAY computer multifunction
MOTOR AND POWERPOLINI EP3 250W -70 Newton/metro torque system
MAX SPEED25 Km/h
BATTERYPOLINI frame integrate Li-ion 36V-14Ah 500Wh
BATTERY WEIGHT2,6 Kg
CHARGE TIME5-6 hours
MINIMUM CHARGE30-40 days
AUTONOMYse chart
WEIGHT21 Kg
MAXIMUM CAPACITY90 Kg

DISPLAY

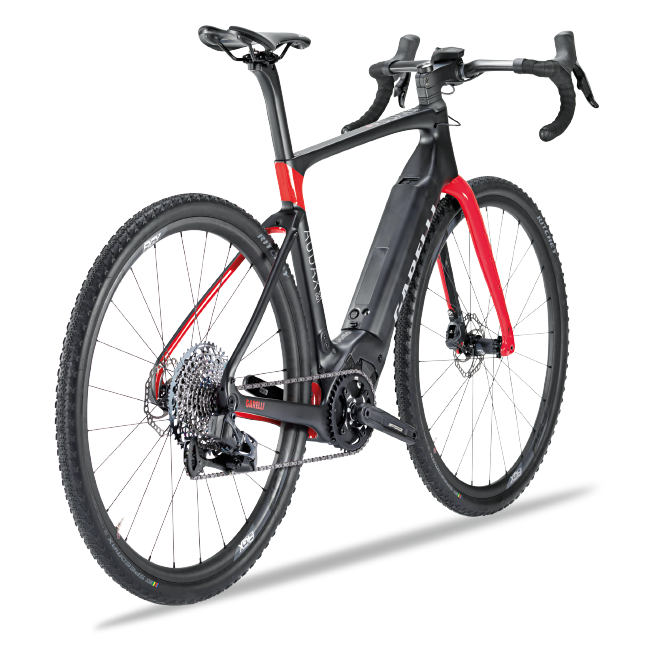

WHEELS(rim) FSA agx / (tire) RITCHEY SPEEDMAX COMP 700x40C
FRAMEgravel carbon frame, thru-axles, internal cable routing
FORKgravel carbon fork, thru-axles, flat mount disc
STEMFSA
HANDLEBARFSA K-WING AGX CARBON
SADDLEFABRIC
SEAT TUBEINTEGRATE
CHAINWHEEL / CRANKFSA 38T
BRAKES(shifter) SRAM FORCE 12v / (brakes) SRAM FORCE / (disk) ALLIGATOR 140 mm
GEARSSRAM XX1 AXS 12v
B-BRACKETTPOLINI Iintegrate in central motor
DISPLAYPOLINI ERGONOMIC CONFORT LCD DISPLAY computer multifunction
MOTOR AND POWERPOLINI EP3 250W -70 Newton/metro torque system
MAX SPEED25 Km/h
BATTERYPOLINI frame integrate Li-ion 36V-14Ah 500Wh
BATTERY WEIGHT2,6 Kg
CHARGE TIME5-6 hours
MINIMUM CHARGE30-40 days
AUTONOMYse chart
WEIGHT15 Kg
MAXIMUM CAPACITY90 Kg

DISCOVER ALL
E-BIKES VERSION

BOSCH PERFORMANCE LINE CX ENGINE

With a maximum torque of 75Nm, the Performance Line CX is the ambitious and demanding eBikers. In eMBT mode, you always receive the required power – from Tour to Turbo. Up to 300% of perfectly delivered support, incredible dynamism and unique grip provide the best possible support on all terrains, as well as improved start-up behaviour.

BOSCH PERFORMANCE LINE CX ENGINE

With a maximum torque of 75Nm, the Performance Line CX is the ambitious and demanding eBikers. In eMBT mode, you always receive the required power – from Tour to Turbo. Up to 300% of perfectly delivered support, incredible dynamism and unique grip provide the best possible support on all terrains, as well as improved start-up behaviour.

Motore elettrico Bosh
