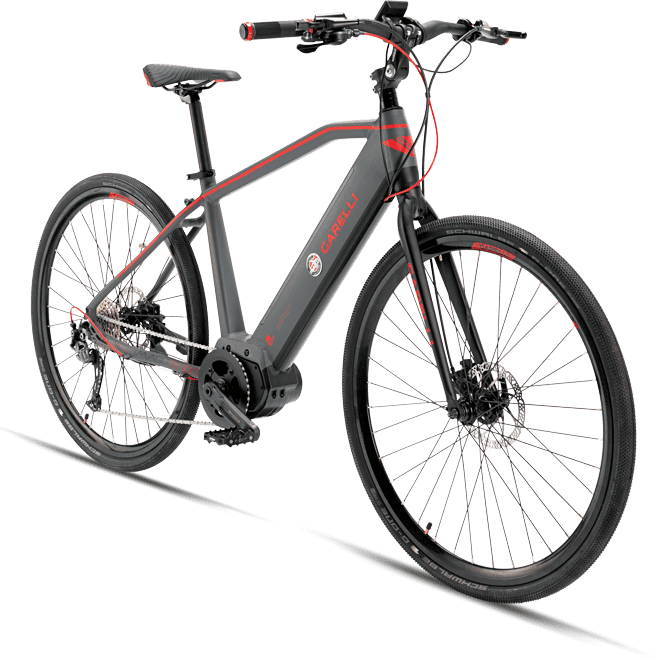

IMAGO TK 300
ENGINE
OLI MOVE PLUS 250W
BATTERY
SAMSUNG 14 AH / 500 WH
* Average of combined use of all four modes
* The renages are tipica values of the new rechargeable batteries, which may decrease if one of the conditions listed above deteriorates.
*** No additional connected electronic components, e.g. light.

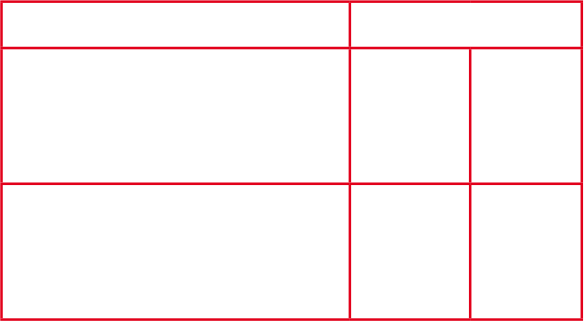

DRIVE UNIT PERFORMANCE
GEOMETRIES
| SIZE | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 18'' | 299 | 460 | 549 | 794 | 730 | 462 | 668 |
COMPONENTS
| WHEELS | 700C x 40C -SCHWALBE GONE ALL ROUND tyre MALVESTITI CERCHI ITALIA high profile double chamber rim |
| FRAME | hydroformed aluminium |
| FORK | TDC162Z hydroformed reinforced steel |
| STEM | ZOOM aluminium TDS-D299N |
| HANDLEBAR | ZOOM aluminium -AL-101 |
| SADDLE | SELLE ROYAL RAMPAGE model, with position light coupling (light available on request) |
| STEERING HEAD | PROMAX aluminium SP-252 |
| CHAINWHEEL | FSA CK762 ISIS 165mm |
| PEDALS | WELLGO aluminium LU934 |
| BRAKES | TEKTRO HD-M290 OIL TUBE hydraulic disc |
| DERAILLEUR | SHIMANO ALIVIO RD-M4000SGS |
| GEARS | SHIMANO ALIVIO SL-M4000R- 9 speeds |
| B-BRACKETT | integrated in the central motor |
| DISPLAY | OLI EDS multifunction computer |
| MOTOR AND POWER | OLI MOVE PLUS 250W -80 Newton/metro central torque system |
| MAX SPEED | 25 Km/h |
| BATTERY | Li-ion 36V-14Ah 500Wh SAMSUNG cells integrated in the frame |
| BATTERY WEIGHT | 3,5 Kg |
| CHARGE TIME | 5-6 hours |
| MINIMUM CHARGE | 30-40 days |
| AUTONOMY | see data sheet, page 33 |
| WEIGHT | 21 Kg |
| MAXIMUM CAPACITY | 90 Kg |
DISPLAY
| BOSCH PURION DISPLAY | Charging status, speed, riding mode, range, trip distance, total distance |
| Play lighted from behind | |
| 5 riding modes |
|
| Walk assistance | |
| Splash-proof | |
| Operated from handlebar | |
| Compatible with DualBattery |
