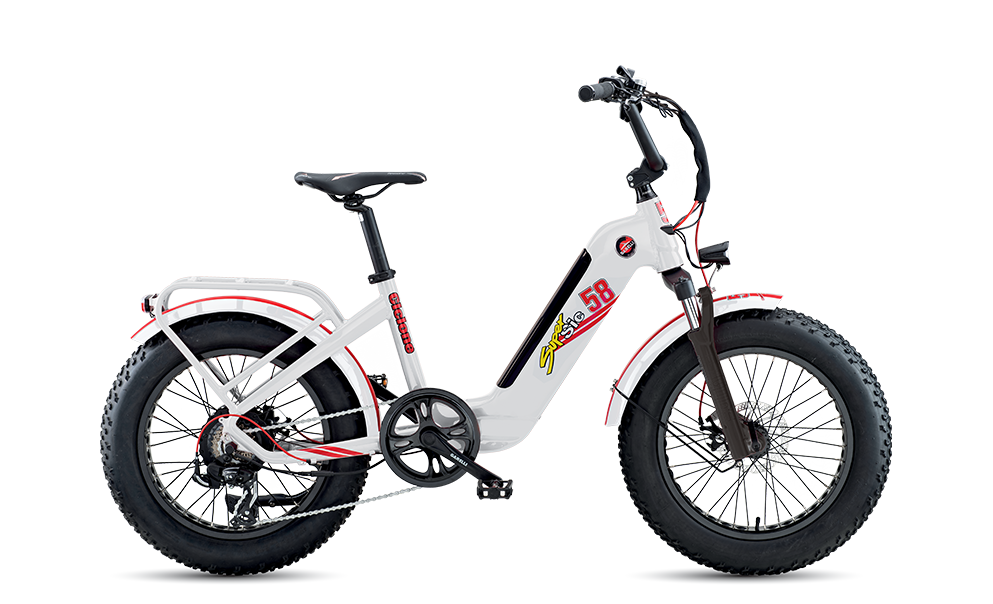

E-BIKE CICLONE EDITION SIC 58
MOTOR
BAFANG BRUSHLESS
BATTERY
48 V / 14 AH / 670 WH
The partnership between our brand and Sic 58 has led to the birth of an amazing project to support the Marco Simoncelli Foundation in the most wonderful and important race, that of solidarity.
We have created a special version of the Ciclone – our compact electric motorbike, just as we have created a dedicated version of the e-bike that is reminiscent in colours and style of the motorbike that belonged to the great MotoGP champion, Marco Simoncelli.
The Ciclone Sic 58 Edition e-bike is our tribute to the passion, joie de vivre and determination of the great champion who died on the Sepang circuit in Malaysia on 23 October 2011 while doing what he loved most, riding his motorbike.
GEOMETRIES
| SIZE | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 18” | 280 | 350 | 597 | 351 | 616 | 367 | 615 |
COMPONENTS
| WHEELS | VERSION SPORT + PASSION 20” x 4.0 VEETIRE SPEEDSTER 2.7mm reinforced rear spokes VERSION SCOUT 20” x 4.0 VEETIRE MISSION COMMAND 2.7mm reinforced rear spokes |
| FRAME | aluminium folding |
| FORK | RST aluminium suspension fork |
| STEM | aluminium folding |
| SADDLE | DDK model 5090, GEL ergonomic |
| SEAT TUBE | aluminium SP-252 30.4 X350mm |
| CHAINWHEEL / CRANK | PROWHEEL PRO-E48-PP with save-space folding pedals VP-F55 |
| BRAKES | TEKTRO E350 IDRAULICO HYDRAULIC, disk 160 mm Front and rear |
| GEARS | SHIMANO TY500 6 speed 14T 28T |
| B-BRACKETT | cartridge |
| DISPLAY | CLOUD DRIVE CDC6 multifunction |
| FRONT REAR LIGHT | front LED integrate power supply and integrate horn / rear LED integrate power supply |
| MOTOR AND POWER | brushless 48V-250W- 50NM |
| MAX SPEED | 25 km/h |
| BATTERY | Li-ion 48V-14Ah 670Wh SAMSUNG cells |
| BATTERY WEIGHT | 3,5 Kg |
| CHARGE TIME | 5-6 hours |
| MINIMUM CHARGE | 30-40 days |
| AUTONOMY | 50 km approximately depending on load and road conditions |
| WEIGHT | 21Kg |
| MAXIMUM CAPACITY | 90 Kg |
| CARRIER LOAD CAPACITY | 25 Kg |
