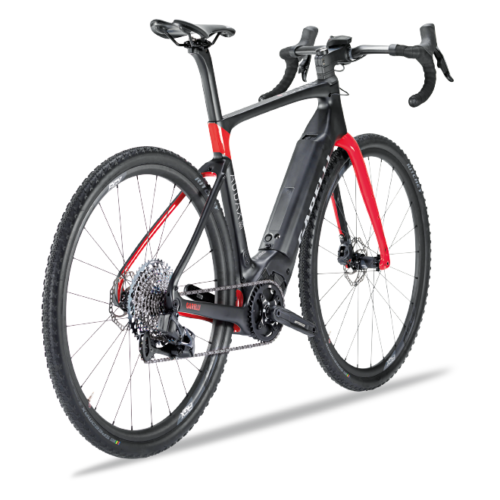

AUDAX GR 001
MOTOR
POLINI EP3+
BATTERY
36 V / 14 AH / 500 WH
Average Pedalling Frequency 60-80 Rpm.
Cyclist Weight 60-80 Kg
Range – Average Speed 20-25 Km/h
Bicycle With Road Or Narrow Mtb Wheel
Flat Terrain
ERGONOMIC LCD DISPLAY
Compact and easy to read, it allows you to control your E-Bike in a simple and intuitive way.
5 LEVELS ASSISTANCE
offers dynamic control at any speed.
LIGHT
The lighting system is controlled by the display.
ASSISTED WALK
In case you need to push your E-bike by hand, E-P3 allows you to proceed at 6 Km / h with the simple press of a button.

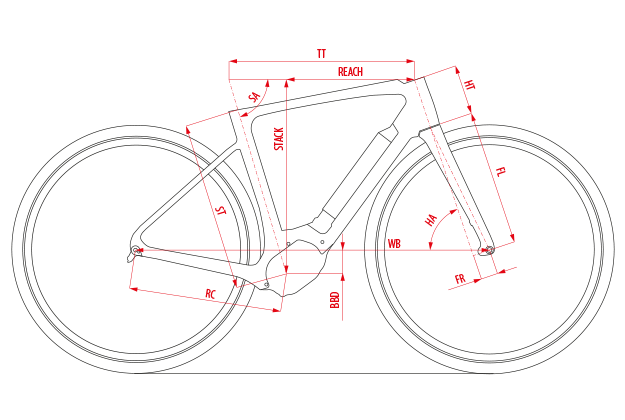

GEOMETRIES
| SIZE | RC | WB | BBD | ST | STACK | REACH | TT | HT | FL | FR | SA | HA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17" | 445 | 1034.5 | 69 | 450 | 533 | 377.2 | 525 | 115 | 395 | 50 | 74.5 | 70.5 |
| 19” | 445 | 1035.7 | 69 | 480 | 556 | 379.3 | 535 | 135 | 395 | 50 | 74 | 71 |
| 21” | 445 | 1038.2 | 69 | 500 | 565.2 | 379.8 | 545 | 145 | 395 | 50 | 73.5 | 71.5 |
COMPONENTS
| WHEELS | SCHWALBE NOBBY NIC SNAKESKIN plus 29"X 2.35"FRONT /27.5" X 2.6" REAR .Rim double hall MALVESTITI CERCHI ITALIA |
| FRAME | alloy hydroformed |
| FORK | ROCKSHOX 35 GOLD BOOST 29” TRAVEL 160mm. AXLE 15mm.(110mm.) |
| REAR SHOCK | Rock Shox Deluxe trunnion 185x55 |
| STEM | ZOOM TDS-D507G-8FOV(EN-M) 40mm |
| HANDLEBAR | ZOOM MTB-AL-320BT FOV W :720mm D :31.8mm |
| SADDLE | DDK model 5090, GEL ergonomic |
| SEAT TUBE | ZOOM SP-C207 4X 350mm |
| CHAINWHEEL / CRANK | FSA CK745 ISIS /chain wheel FSA 38T |
| BRAKES | SHIMANO XT (4 pistoni) disco 180mm Post./ 203 mm Ant. |
| GEARS | SRAM EAGLE 12V 11-50T |
| B-BRACKETT | POLINI Iintegrate in central motor |
| DISPLAY | POLINI ERGONOMIC CONFORT LCD DISPLAY computer multifunction |
| MOTOR AND POWER | POLINI EP3+ MX 36V - 250W - 90 Newton/metro torque system |
| MAX SPEED | 25 Km/h |
| BATTERY | POLINI frame integrate Li-ion 36V-14Ah 500Wh |
| BATTERY WEIGHT | 2,6 Kg |
| CHARGE TIME | 5-6 hours |
| MINIMUM CHARGE | 30-40 days |
| AUTONOMY | se chart |
| WEIGHT | 21 Kg |
| MAXIMUM CAPACITY | 90 Kg |
