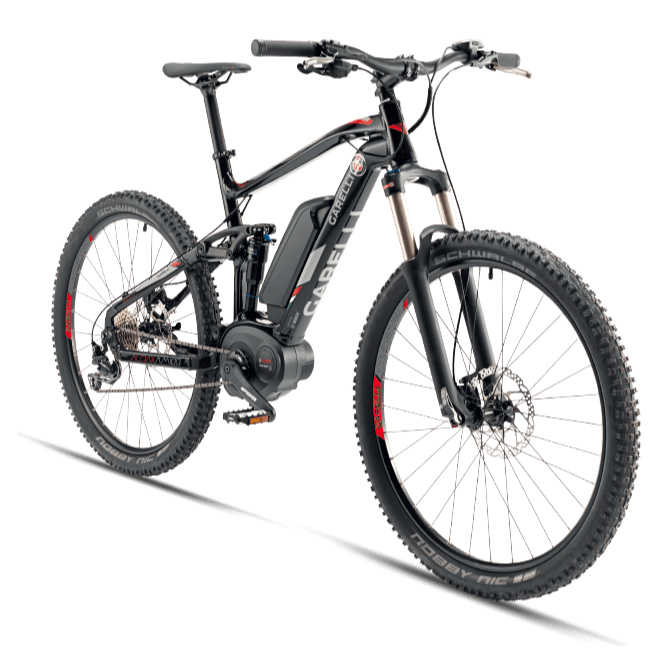

AUDAX AM 100
ENGINE
BOSCH PERFORMANCE CX
BATTERY
14 AH / 500 WH
* Average of combined use of all four modes
* The renages are tipica values of the new rechargeable batteries, which may decrease if one of the conditions listed above deteriorates.
*** No additional connected electronic components, e.g. light.
DRIVE UNIT PERFORMANCE

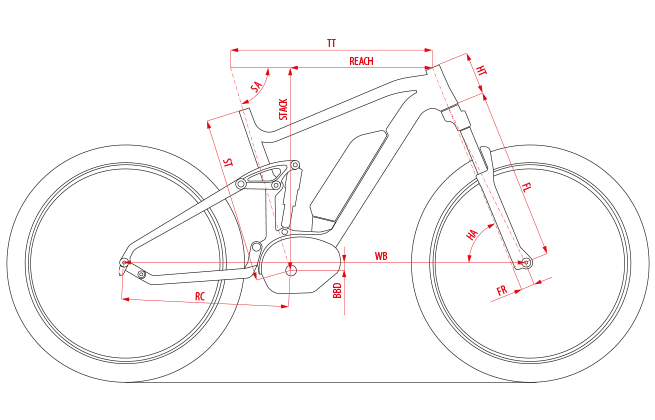

GEOMETRIES
| SIZE | RC | WB | BBD | ST | STACK | REACH | TT | HT | FL | FR | SA | HA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17'' | 489 | 1184 | 14 | 430 | 580 | 400 | 567(580) | 125 | 516 | 42 | 73 | 67 |
| 19'' | 489 | 1186 | 14 | 470 | 585 | 417 | 570(595) | 128 | 516 | 42 | 73 | 67 |
| 21'' | 489 | 1194 | 14 | 533 | 592 | 430 | 586(610) | 135 | 516 | 42 | 73 | 67 |
COMPONENTS
| WHEELS | SCHWALBE NOBBY NIC plus 27.5"x 2.35" tyre - RODI BLACKROCK high profile double chamber rim with Sapin 14G spokes |
| FRAME | hydroformed aluminium |
| FORK | SUNTOUR XC AIR air suspension |
| REAR SHOCK | SR SUNTOUR RS17 DUAIR LO-R |
| STEM | TRANZX aluminium ST58A |
| HANDLEBAR | PROMAX aluminium HB3188 |
| SADDLE | SELLE ROYAL SETA S1 W/ACTEX |
| STEERING HEAD | SATORI SP226 30.4X350 |
| CHAINWHEEL | FSA DYNA DRIVE CK-745 ISIS / CORONA FSA 15T |
| PEDALI | - |
| BRAKES | SHIMANO ACERA BR-MT400 OIL TUBE hydraulic disc/disc 180MM |
| DERAILLEUR | SHIMANO DEORE RD-M610-10 speeds |
| GEARS | SHIMANO DEORE CS-HG500 10 speeds |
| B-BRACKETT | integrated in the central motor |
| DISPLAY | BOSH PURION |
| MOTOR AND POWER | BOSH PERFORMANCE CX |
| MAX SPEED | 25 Km/h |
| BATTERY | BOSH 36V-14Ah 500Wh |
| BATTERY WEIGHT | 3,5 Kg |
| CHARGE TIME | 5-6 hours |
| MINIMUM CHARGE | 30-40 days |
| AUTONOMY | se chart |
| WEIGHT | 21 Kg |
| MAXIMUM CAPACITY | 90 Kg |
DISPLAY
| BOSCH PURION DISPLAY | Charging status, speed, riding mode, range, trip distance, total distance |
| Play lighted from behind | |
| 5 riding modes |
|
| Walk assistance | |
| Splash-proof | |
| Operated from handlebar | |
| Compatible with DualBattery |
