AUDAX XC 003

AUDAX XC 003


ENGINE

BOSCH PERFORMANCE CRUISE

BATTERY

11 AH / 400 WH

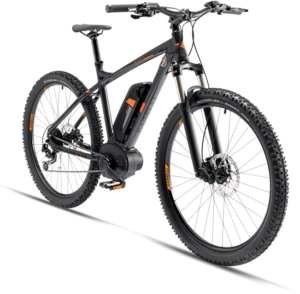

Biciletta elettrica a pedalata assistita E-bike Garelli Audax XC 003

* Average of combined use of all four modes
* The renages are tipica values of the new rechargeable batteries, which may decrease if one of the conditions listed above deteriorates.
*** No additional connected electronic components, e.g. light.

DRIVE UNIT PERFORMANCE

GEOMETRIES


SIZERCWBBBDSTSTACKREACHTTHTFLFRSAHA
17''4741123504325924185601184954273.570
19''4741144504836074305801234954273.570
21''4741170505336254546101324954273.570

COMPONENTS


WHEELS27.5" x 2.35" -SCHWALBE SMART SAM tyre - RODI BLACKROCK 27.5" high profile double chamber rim with Sapin 14G spokes
FRAMEhydroformed aluminium
FORKSUNTOUR SF14-XCR air suspension
STEMJD COMPONENTS ST58A
HANDLEBARPROMAX aluminium HB3118
SADDLESELLE ROYAL SETA S1 W/ACTEX
STEERING HEADKALLOY SPDC1 30.9 X400
CHAINWHEELFSA CK310 ISIS /CROWN FSA 15T
PEDALSXERAMA SP-610 ALLOY CAYETE
BRAKESSHIMANO ALTUS BR-MT200 OIL TUBE hydraulic disc/disc 180MM / 160MM
DERAILLEURSHIMANO DEORE RD-M592-9 speeds
GEARSSHIMANO ALTUS SL-M2000 9 speeds
B-BRACKETTintegrated in the central motor
DISPLAYBOSH PURION
MOTOR AND POWERBOSH PERFORMANCE CRUISE
MAX SPEED25 Km/h
BATTERYBOSCH POWERPACK 36V-11Ah 400Wh
BATTERY WEIGHT3,5 Kg
CHARGE TIME5-6 hours
MINIMUM CHARGE30-40 days
AUTONOMYsee chart
WEIGHT21 Kg
MAXIMUM CAPACITY90 Kg

DISPLAY


BOSCH PURION DISPLAY Charging status, speed, riding mode, range, trip distance, total distance
Play lighted from behind
5 riding modes
Walk assistance
Splash-proof
Operated from handlebar
Compatible with DualBattery

DISCOVER ALL
E-BIKES VERSION

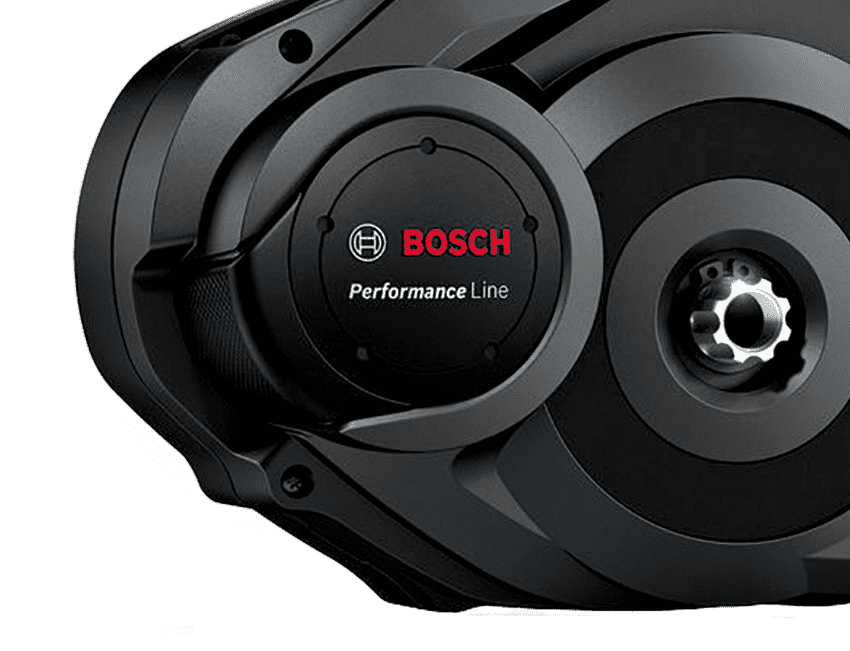

BOSCH PERFORMANCE LINE CRUISE ENGINE

The Performance Line eBikes have character and deliver the appropriate amount of support at the right moment, guaranteeing even more riding enjoyment. The finely balanced system facilitates top performance and a sporty riding style – up to 25 km/h with the Performance Cruise drive unit or up to 45 km/h with the Speed variant.

BOSCH PERFORMANCE LINE CRUISE ENGINE

The Performance Line eBikes have character and deliver the appropriate amount of support at the right moment, guaranteeing even more riding enjoyment. The finely balanced system facilitates top performance and a sporty riding style – up to 25 km/h with the Performance Cruise drive unit or up to 45 km/h with the Speed variant.

Motore elettrico Bosh
